The Ideal Esprit Eco2 30kW Gas Combi Boiler is an A-rated, wall-mounted natural gas boiler designed to provide central heating and domestic hot water from one compact unit. With a 30kW heat output and compact dimensions of 395mm wide × 700mm high × 278mm deep, it is well suited to replacement installations where space is limited.
This Professional Boiler Pack includes a 600mm horizontal flue, wireless OpenTherm programmable thermostat and 22mm magnetic filter, together with a range of useful installation accessories. The package provides a convenient way to source the main boiler and associated components together.
The Esprit Eco2 features a domestic hot water preheat function to help deliver hot water quickly when required. Its built-in OpenTherm capability allows the supplied compatible thermostat to provide responsive heating control, while the compact design can fit neatly into suitable cupboard installations.
The included magnetic filter helps protect the heating system by capturing sludge, rust and metallic debris. The package also includes a carbon monoxide alarm, system inhibitor and cleaner, shock arrestor and other installation components.
Key Features
30kW heat output
Natural gas combi boiler
ErP A-rated
Compact 395mm-wide design
278mm overall depth
Wall-mounted installation
Domestic hot water preheat function
Built-in OpenTherm compatibility
EPH Controls wireless programmable thermostat and receiver
Horizontal 600mm flue included
22mm magnetic filter included
Hispec battery-operated carbon monoxide alarm
Altecnic 0.16L shock arrestor
Compact, cupboard-friendly design
Suitable for internal installation
Specifications
Brand: Ideal
Model: Esprit Eco2
Boiler Type: Gas Combi
Heat Output: 30kW
Fuel Type: Natural Gas
ErP Rating: A
Mounting: Wall
Colour: White
Dimensions: 395mm W × 700mm H × 278mm D
Weight: 32.8kg
DHW Connections: 15mm Compression
Flue Type: Horizontal
Flue Length: 600mm
Controller: EPH Controls CP4 OpenTherm Programmable Thermostat & Wireless Receiver
Thermostat: Wireless
Filter: 22mm Magnetic Filter
MPN: 211501
EAN: 5056902423374
Product Code: PN211501

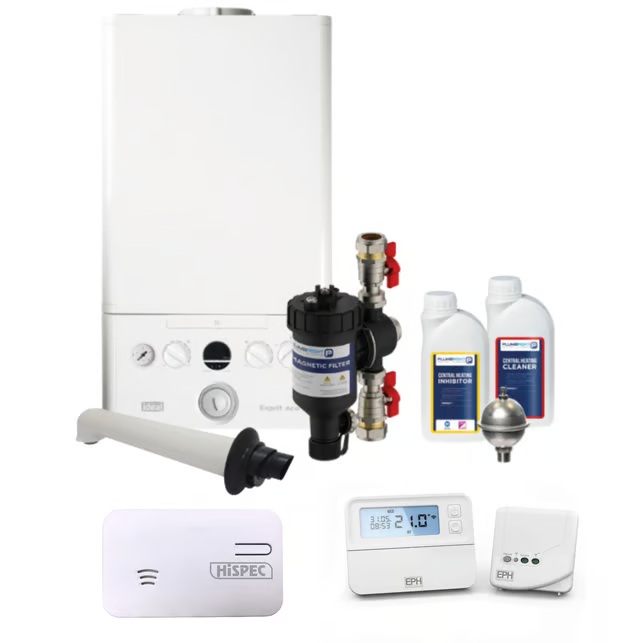

What’s Included
Ideal Esprit Eco2 30kW Gas Combi Boiler – 446279
Ideal Esprit Eco horizontal 600mm flue kit – 678294
EPH Controls CP4 OpenTherm programmable thermostat – 210552
Wireless receiver
Plumbright 22mm magnetic filter – 450981
Plumbright 500ml inhibitor – 300629
Plumbright 500ml cleaner – 106561
Altecnic 0.16L shock arrestor – 102606
Hispec battery-operated carbon monoxide alarm – 627910
A comprehensive 30kW A-rated natural gas combi boiler package combining the Ideal Esprit Eco2 with a horizontal flue, wireless OpenTherm heating controls and essential system-protection accessories.
